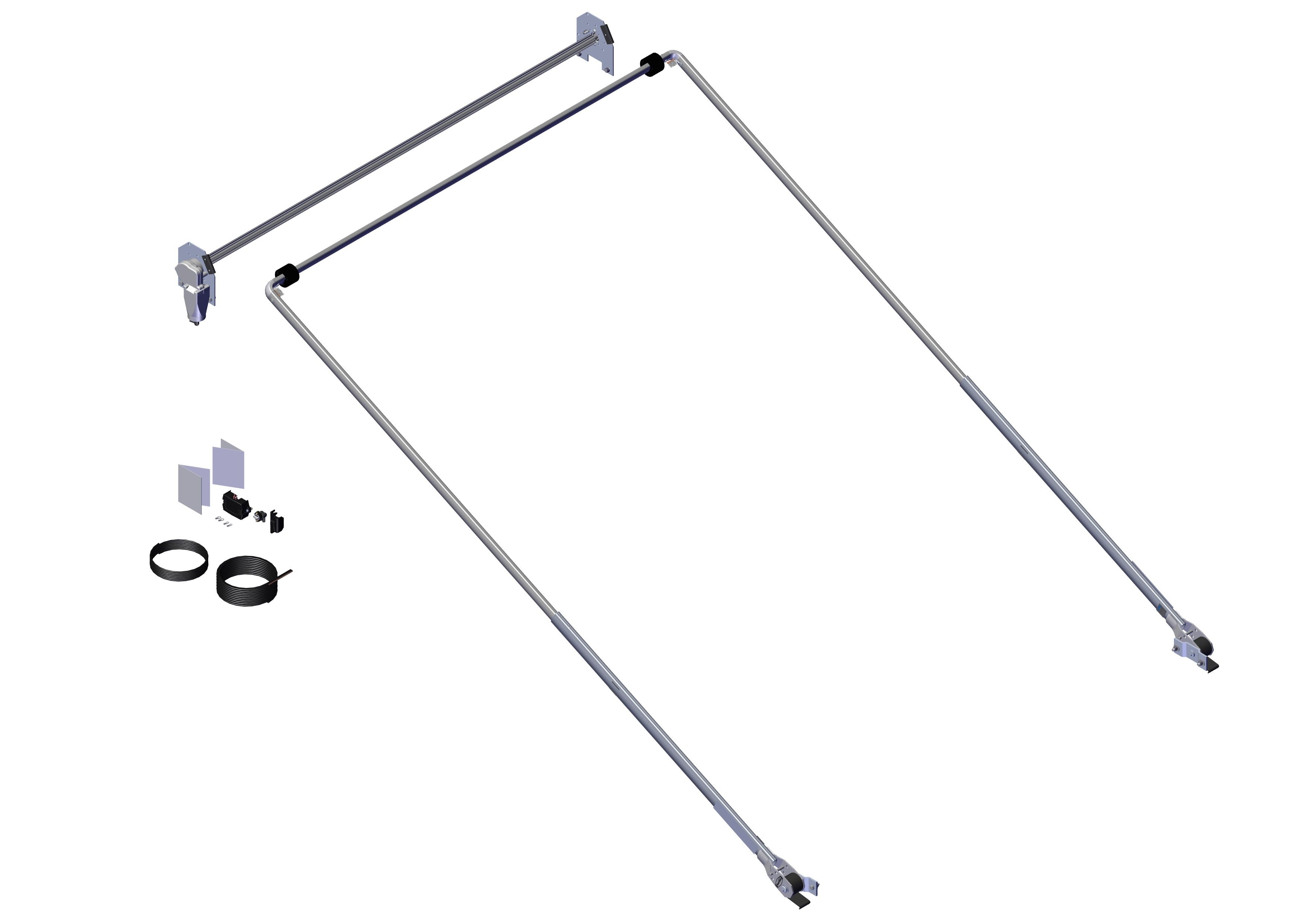

TM400, 97" Axle Kit, 4 Spring 60" Ext Pivot, Bow Set
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 36370 | Spool Kit. TarpMaster Tarp Spool w/97" Axle & Mounting Brackets - S/N: TM | 1 |
| 2 | 76700 | Bow Set. 98" Wide Top Tube w/ 98" Side Arms | 1 |
| 3 | 46440-60 | Pivot Set. 4 Spring w/ 60" Aluminum Pivot Tube | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 10310 | TarpMaster Motor 12V. 5 Year Warranty :S/N: | 1 |
| 2 | 18294 | Bolt. 1/2" x 1" Hex Head Bolt | 4 |
| 3 | 18631 | Nut. 1/2" Nylock Nut | 4 |
| 4 | 36340 | Bracket. Aluminum Mounting Brackets - PAIR | 1 |
| 5 | 101501 | Instructions. Front to Back Installation | 1 |
| 6 | 18260 | Bolt. 5/16" x 5/8" Button Head Bolt - Zinc Plated | 5 |
| 7 | 11411 | Wire. 16/3-Conductor - 15ft | 1 |
| 8 | 100743 | Wire. 8 ga. Dual Conductor(55') | 1 |
| 9 | 31030 | Axle. 97" Pre-Threaded Tarp Axle w/Stub Shaft | 1 |
| 10 | 31050 | Bearing. 3/4" Flanged Axle Bearing with bolts | 1 |
| 11 | 10914 | Electric Kit. With 10698 12V Relay and Rocker Switch | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 76770 | Bow Tube. 98" AL Top Tube for Tarp Bow | 2 |
| 2 | 76810 | Tarp Flange for Bow Tube (Pair) | 2 |
| 3 | 76760 | Bow Tube. 98" Side Arm w/ 90 Corner | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 4644D-60 | Pivot. Drv-4 Spring Torsion AL - 60" Pivot Tube | 1 |
| 2 | 4644P-60 | Pivot. Pass-4 Spring Torsion AL - 60" Pivot Tube | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 36338 | Bracket. Aluminum Mounting Bracket - Driver Side | 1 |
| 2 | 36339 | Bracket. Aluminum Mounting Bracket - Passenger Side | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 10695 | Relay Kit. HD Mechanical Relay w/ 35 Amp Manual Reset Breaker & Terminal 12V | 1 |
| 2 | 19300 | Switch. Rocker (Open/Close) | 1 |
| 3 | 10390 | Bracket. Mounting for Rocker Switch | 1 |
| 4 | 101784 | Instructions. 10698 12 volt wiring Diagram | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 76770 | Bow Tube. 98" AL Top Tube for Tarp Bow | 1 |
| 2 | 76800 | Casting. Aluminum Corner - 90 Degree With Fasteners and Tether | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 46140-60 | Pivot Tube. AL 4 Spring Arm Only 60" | 1 |
| 2 | 45340 | Pivot Pin. 4-Spring with 47000 snap ring | 1 |
| 3 | 18631 | Nut. 1/2" Nylock Nut | 2 |
| 4 | 18412 | Washer. 1/2" Flat Zinc | 2 |
| 5 | 18296 | Bolt. 1/2" x 1 1/2" Hex Head Bolt | 2 |
| 6 | 47230 | Spring. Spiral Torsion Spring 1 1/4" | 4 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 46140-60 | Pivot Tube. AL 4 Spring Arm Only 60" | 1 |
| 2 | 45340 | Pivot Pin. 4-Spring with 47000 snap ring | 1 |
| 3 | 18296 | Bolt. 1/2" x 1 1/2" Hex Head Bolt | 2 |
| 4 | 18412 | Washer. 1/2" Flat Zinc | 2 |
| 5 | 18631 | Nut. 1/2" Nylock Nut | 2 |
| 6 | 47230 | Spring. Spiral Torsion Spring 1 1/4" | 4 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 17918 | Breaker. 35A Outdoor Manual Reset Circuit Breaker | 1 |
| 2 | 101784 | Instructions. 10698 12 volt wiring Diagram | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 103533 | Tether. Cable with Install Label for 90 degree corner | 1 |
| 2 | 18719 | Nut. 1/4-20 Cap Conn Nut Clear Zinc - Post bolt for 90 degree corners | 2 |
| 3 | 18718 | Bolt. 1/4-20 x 1 3/16 Bolt Clear Zinc - Post bolt for 90 degree corners | 2 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47040 | Bushing. 1 1/4 Poly T- Bushing for Pivot Pin | 1 |
| Bom Id | Part # | Description | Qty |
|---|---|---|---|
| 1 | 47040 | Bushing. 1 1/4 Poly T- Bushing for Pivot Pin | 2 |
| 2 | 18520 | Pin. 1/2" x 3-1/2" Clevis | 1 |
| 3 | 18293 | Screw. 1/2" x 3/8" Set Screw | 2 |
